Traffic Control & Spikes

DoorKing 1601

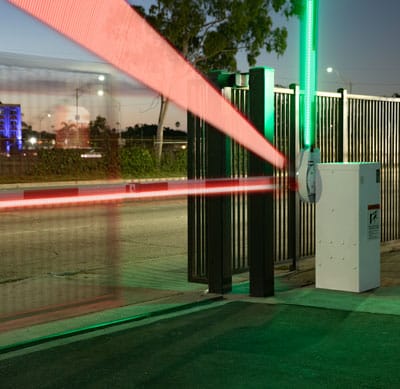

High Usage Single Lane Traffic Control

• Designed for single lane (14 ft maximum) vehicular control in high traffic applications
• Electronic Limit Settings

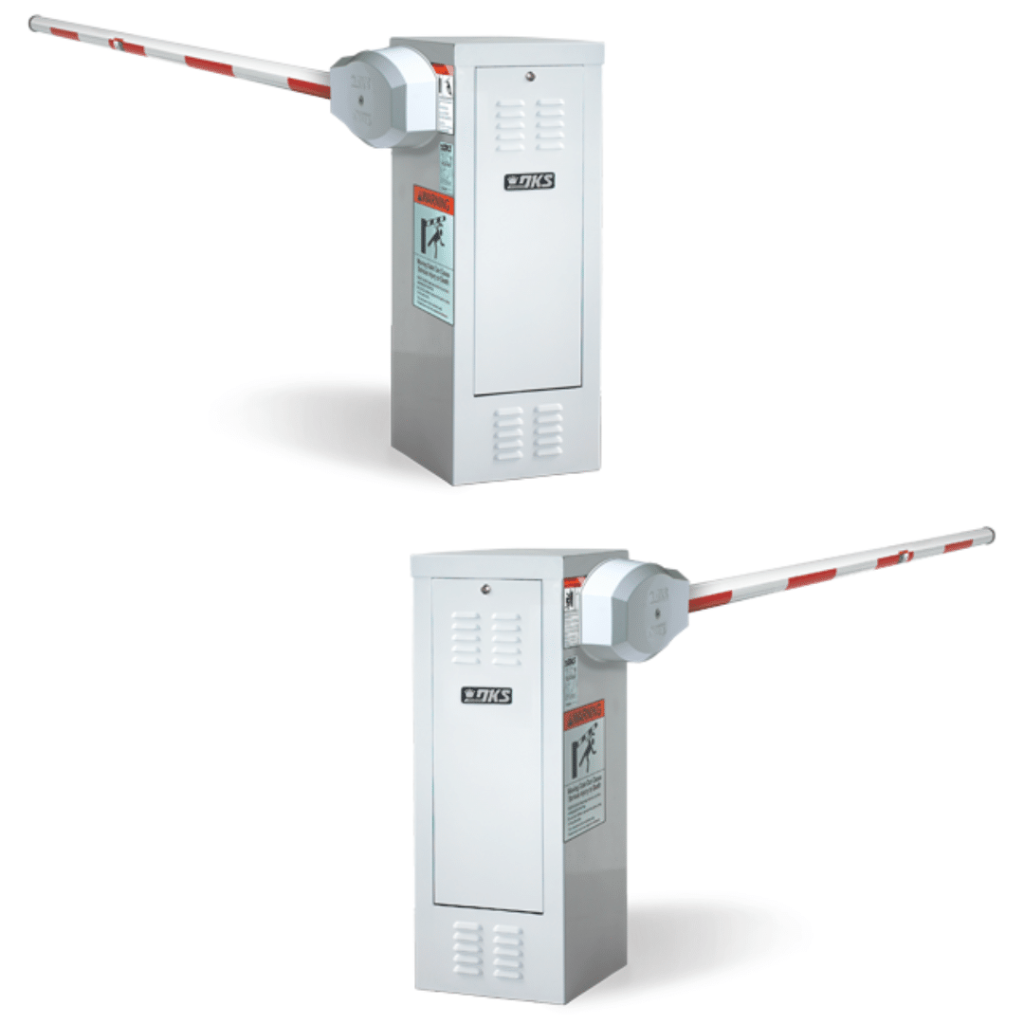

• Operators are designed so that they can be mounted on either the left or right hand side of the roadway

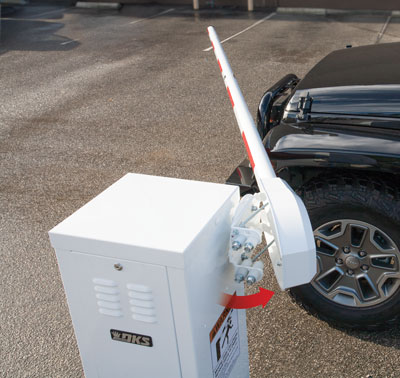

• Lighted and Breakaway Arm Kits available. Low headroom Folding Arm Kits also available
• Pedestrian Protection System available
• Available in white or gun metal gray finish.
• Warranty: 5 years

Brochure

DoorKing 1602

Traffic Control Barrier Options That Fit Any Application

• Designed to control wide traffic lanes (27 feet maximum) in limited use applications
• Suitable for low-cycle applications to restricted access areas such as prisons, airport security areas or industrial sites
• Electronic limit settings
• Three-piece aluminum arms available in 20, 24 and 27 foot lengths
• Pedestrian Protection System
• Warranty: 5 years

Brochure

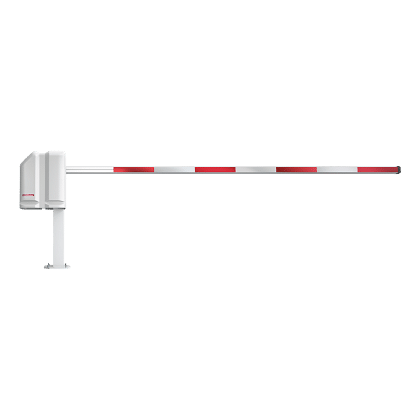

LiftMaster MA & MAS

Mega Arm High Performance & Mega Arm Sprint High-Speed Commercial DC Barrier Gates

• MA: Rated for 6000 cycles per day with an opening speed of 2.5 seconds.
• MAS: Rated for 10,000 cycles per day with an opening speed of 0.9 seconds (arms available in 8ft length only.)
• Battery Backup keeps operator running and traffic moving even when power is down.
• Cabinet Warranty: 10 years
• Electronic and Mechanical Components Warranty: 2 years

Brochure High Performance

Brochure High Speed

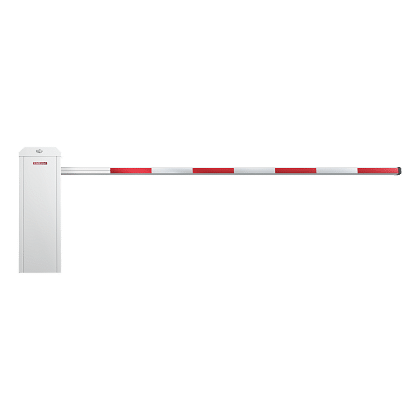

LiftMaster MAT & MAST

Mega Arm Tower High Performance & Mega Arm Sprint Tower High-Speed Commercial DC Barrier Gates

• MAT: Rated for 6000 cycles per day with an opening speed of 2.5 seconds.
• MAST: Rated for 10,000 cycles per day with an opening speed of 0.9 seconds (arms available in 8ft length only.)
• Battery Backup keeps operator running and traffic moving even when power is down.
• Cabinet Warranty: 10 years
• Electronic and Mechanical Components Warranty: 2 years

Brochure High Performance

Brochure High Speed

DoorKing 1603

Barrier Gate Autospike System

The DKS 1603 Barrier Gate Operator Automated Spike System is designed as a modular system, allowing for easy flexibility in different applications and easy installation. The 1603 Operator is designed with many advanced features and mechanically links the Spikes to the Barrier Arm. Ideal for parking lots, rental car agencies, schools, car dealerships, government agencies, or in any application where a higher degree of traffic control is preferred.

Brochure

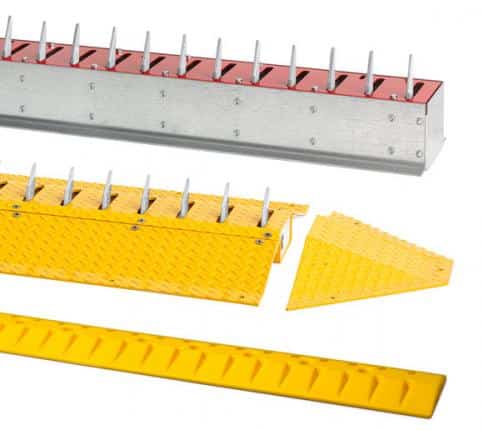

DoorKing 1610

Traffic Spikes

Traffic spikes prevent vehicles from proceeding through a traffic lane in the wrong direction by enforcing one-way traffic lanes.

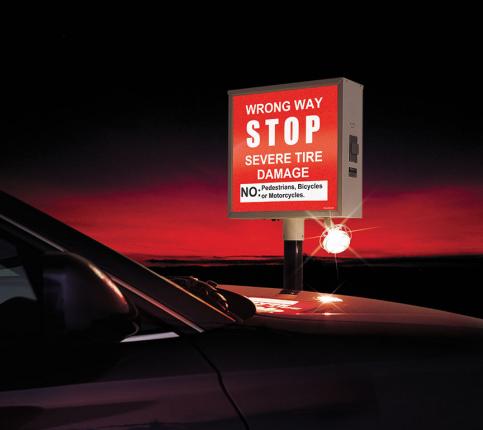

Speed bumps and Warning Signs MUST be installed with traffic spike systems to slow vehicular traffic over the spike system.  Speed bumps force drivers to slow down while driving through the controlled entry point. They are also ideal for keeping vehicular traffic at a safe speed while driving over traffic spikes.

Traffic crossing these spikes in excess of 5 MPH may cause tire damage and create excessive wear in the spike system.

Brochure

Flush Mount Traffic Spikes

• Individual spring loaded spikes.
• Stainless steel springs.
• Weight spikes (no springs) version available.
• Lock-down version available.
• Flush in-ground unit.
• Painted bright red for easy visibility.
• Ideal to enforce one-way traffic.
• Dimensions: 6.5″H x 12.5″W x 72″L. Warning signs must be used with traffic spikes to warn drivers that a one-way traffic lane condition exist.
• Speed bumps should always be used with traffic spikes. Speeds in excess of 5-MPH over the spikes can cause tire damage.

Surface Mount Traffic Spikes

• Spikes sections available in 3-foot sections.
• End caps provide a smooth end to the spike section.
• Torsion springs.
• Lock-down standard.
• Surface mount unit.
• 1/4-inch diamond plate painted bright yellow for easy visibility.
• 3-inch rise provides a built-in speed bump.
• Dimensions: 3″H x 31″W x 36″L. Warning signs must be used with traffic spikes to warn drivers that a one-way traffic lane condition exists.
• Speed bumps should always be used with traffic spikes. Speeds in excess of 5-MPH over the spikes can cause tire damage.

Speed Bumps

• Speed bumps are constructed from solid composite material.
• Speed bumps can be easily removed and re-installed.
• Painted bright yellow for easy visibility.
• Designed for installation on concrete surfaces only.
• Dimensions: 2″H x 11.5″W x 72″L.
