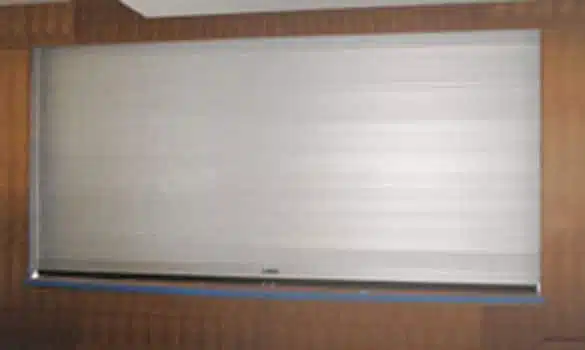

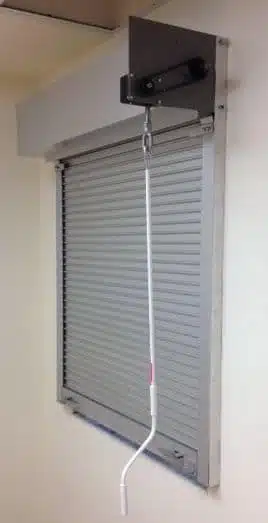

Model S
R&S Aluminum Counter Doors offer compact design and attractive appearance.
Anodized extruded aluminum components are lightweight and have a smooth,
bright finish that has excellent corrosion resistance.
Specifications
Two years
Face of wall or between-jamb
Push-up standard (awning crank should be considered when doors are to be operated over a deep counter of over 7′ high). Chain hoist or motor operation are optional.
Interlocking type 15 flat slats are extruded from 6063 alloy aluminum. Bottom of curtain is reinforced by an extruded aluminum tubular footpiece.
Extruded aluminum guides are bolted to aluminum wall angles. Guides are fitted with nylon pile wear strips.
Steel plate brackets are bolted to guides to support curtain and barrel and provide mounting for hood.
Steel pipe houses torsion spring assembly and supports curtain with a maximum deflection of .03 inch per foot of width. Torsion springs are mounted on a continuous cold rolled steel shaft, adjustable by a tension wheel outside one bracket.
Square hood formed from aluminum sheet, reinforced with top and bottom flanges to limit deflection.
Slide Bolt locks standard for push-up operation, optional otherwise.
Aluminum slats, footpiece, guides and hood are clear anodized. Steel brackets receive one coat or rust inhibiting gray primer. (Dark bronze and other color anodized finishes are optional.)
Options
Key or thumbturn cylinder lock installed on footpiece or guide for added security and convenience.
Standard clear anodized finish may be upgraded to dark bronze or black.
Motors completely contained within the barrel can be provided for counter doors in limited usage applications. Only the manual crank override is visible outside the bracket.

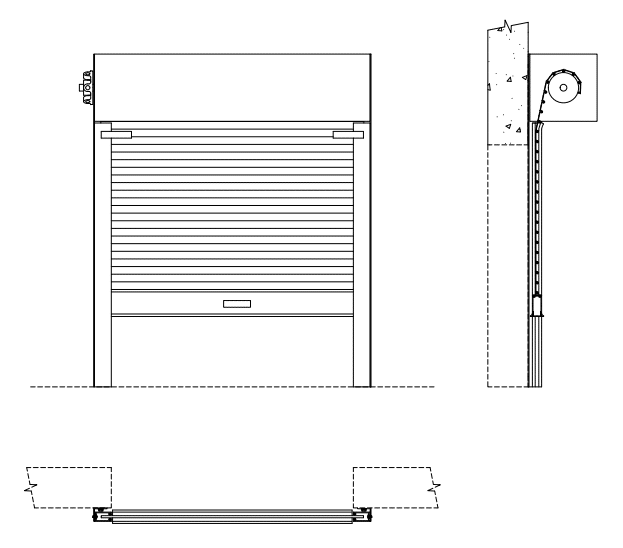

Mounting Details
Curtain Details
Extruded Aluminum Tubular Bottom Bar
#17 Slat
Guide Details
Face Mount
Between-Jamb Mount

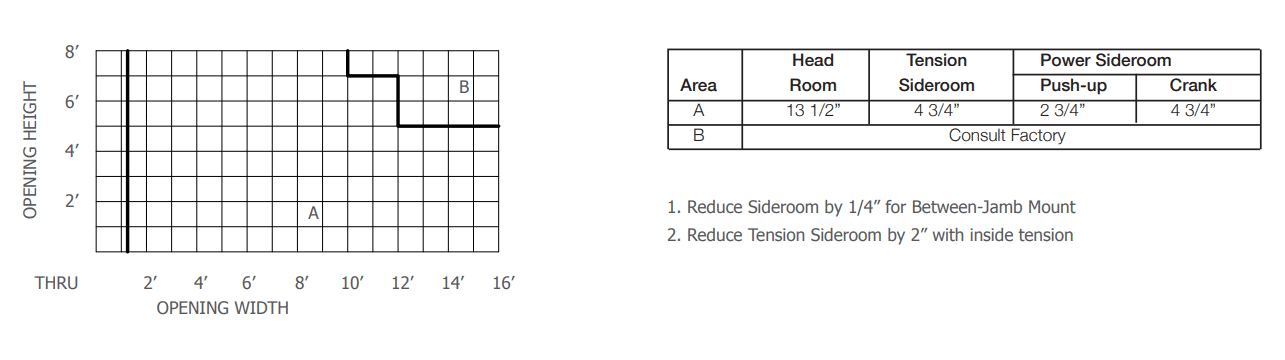

Standard Clearance Requirements
